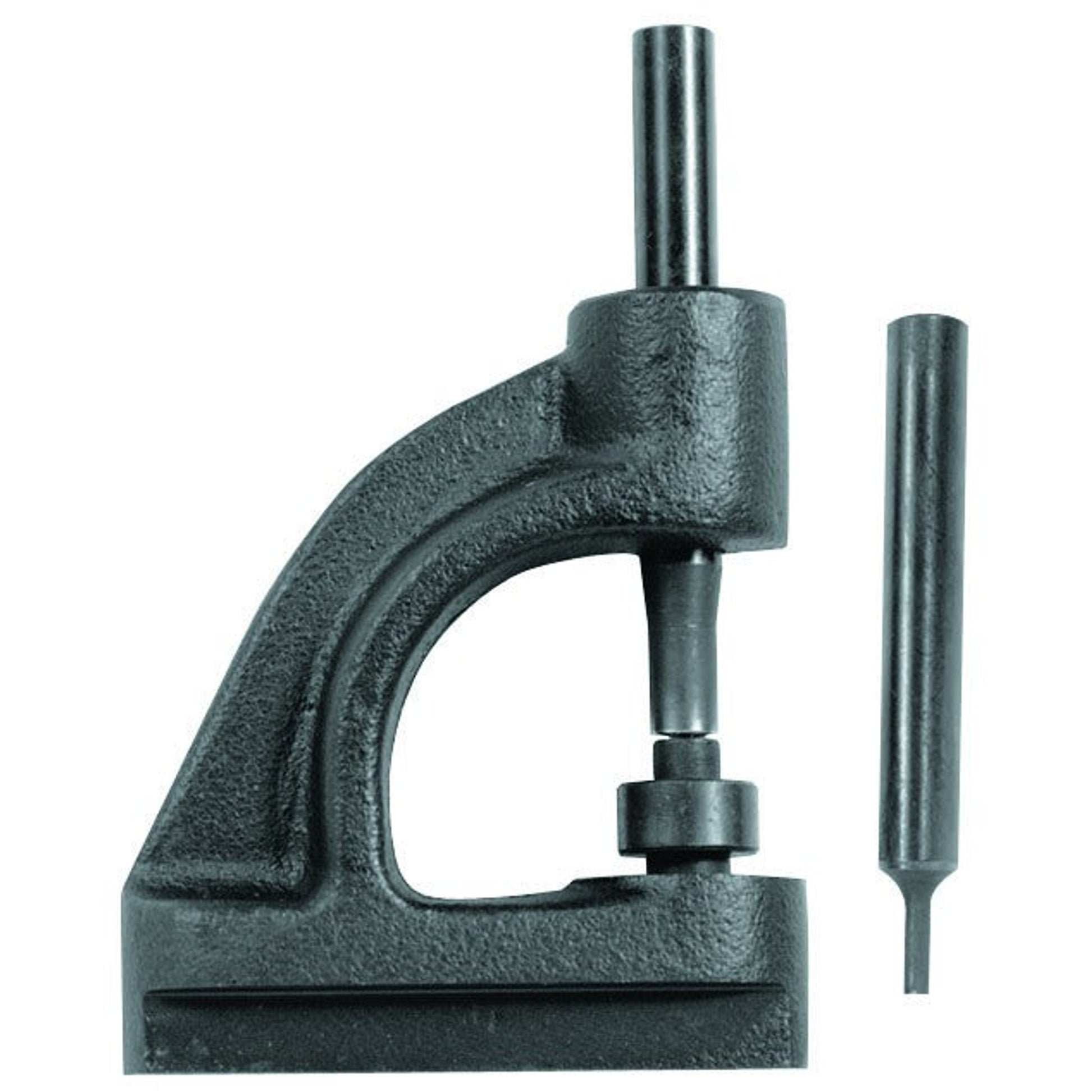

TP95 (Brake Lining Rivet Tool / Hand-Operated Brake Riveting Tool)

The TP95 is a bench-mounted or hand-operated C-clamp-style tool designed for installing and removing tubular or split rivets on aircraft brake linings and clutch assemblies.

​Key features and specifications:

​Construction: Heavy-duty cast steel C-frame for maximum rigidity under pressure.

​Included Tooling: Comes equipped with a rivet removal punch, an anvil, and a roll-clinch rivet set designed for standard 1/8" brake lining rivets.

​Function: Used during brake maintenance to punch out old worn rivets and roll-clinch new tubular rivets when replacing friction pads/linings on aircraft wheel and brake assemblies.
