OMEGA TECHNOLOGIES

OM2-1522 Hi-Lok / Hi-Tigue Pin Protrusion Gauge Set

OM2-1522 Hi-Lok / Hi-Tigue Pin Protrusion Gauge Set

Regular price $12.97 USD
Regular price $13.65 USD Sale price $12.97 USD
Sale Sold out
Shipping calculated at checkout.

NSN: 5220-01-656-8110

Out of stock. Call for shipping times.

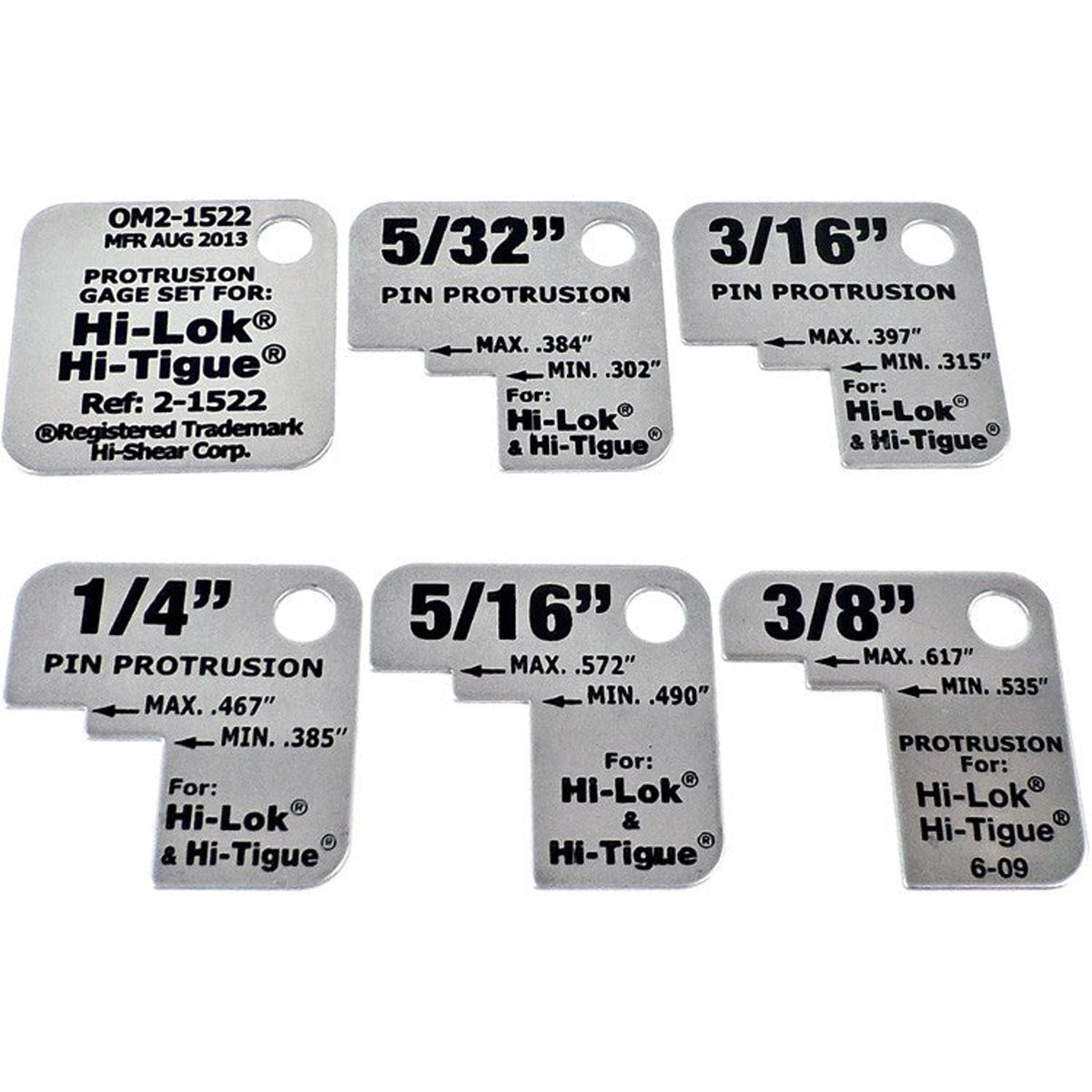

The OM2-1522 is a 5-piece set of precision go/no-go protrusion gauges used to verify proper pin grip length and protrusion after installing nominal-diameter Hi-Lok and Hi-Tigue aerospace structural fasteners. Each gauge leaf features rounded corners to prevent scratching aircraft skins, a large finger hole for easy leaf manipulation, and high-contrast black markings.Key Specifications & Details:

Tool Type: Fastener Pin Protrusion Inspection Gauge Set (5-Leaf Set)

Fastener Sizes: 5/32, 3/16, 1/4, 5/16, and 3/8 nominal diameters (-05, -06, -08, -10, and -12 dash sizes)

Markings & Finish: Extra-large black markings on precision-ground steel leaves with smooth radiused corners
