ATI613T Tungsten Alloy Rivet Bucking Bar
ATI613T Tungsten Alloy Rivet Bucking Bar
NSN: 5120-01-442-1289
Out of stock. Call for shipping times.
Couldn't load pickup availability

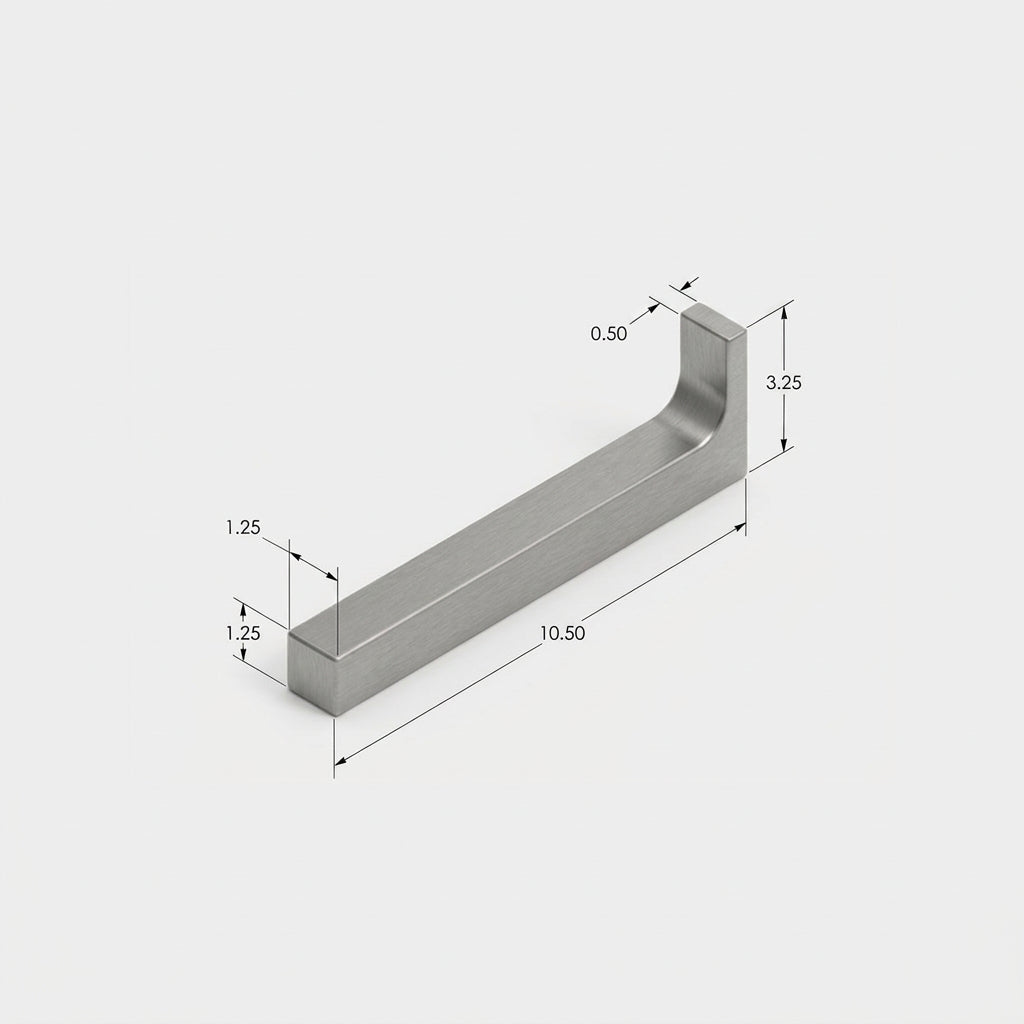

The ATI613T is an ultra-dense, heavy-mass specialized aircraft rivet bucking bar manufactured from sintered heavy tungsten alloy. Because tungsten alloy has roughly double the density of conventional carbon/tool steel, this bar delivers massive inertial resistance and shock absorption in a compact footprint—enabling mechanics to properly upset larger solid rivets in tight, confined structural bays without work-hardening the material.
Tool Type: High-Density Tungsten Airframe Rivet Bucking Bar
Weight: 9.00 lbs (4.08 kg)
Material: High-density sintered tungsten-nickel-iron heavy alloy
Surface Finish: Precision-machined, smooth polished working faces with radiused edges to prevent marring or surface scratching on delicate aircraft skins and internal stringers
Application: Designed for manual backing of medium-to-large solid aluminum and monel rivets (-05, -06, and -08 dash sizes) in restricted structural areas where a traditional steel bar would need to be too large to fit
