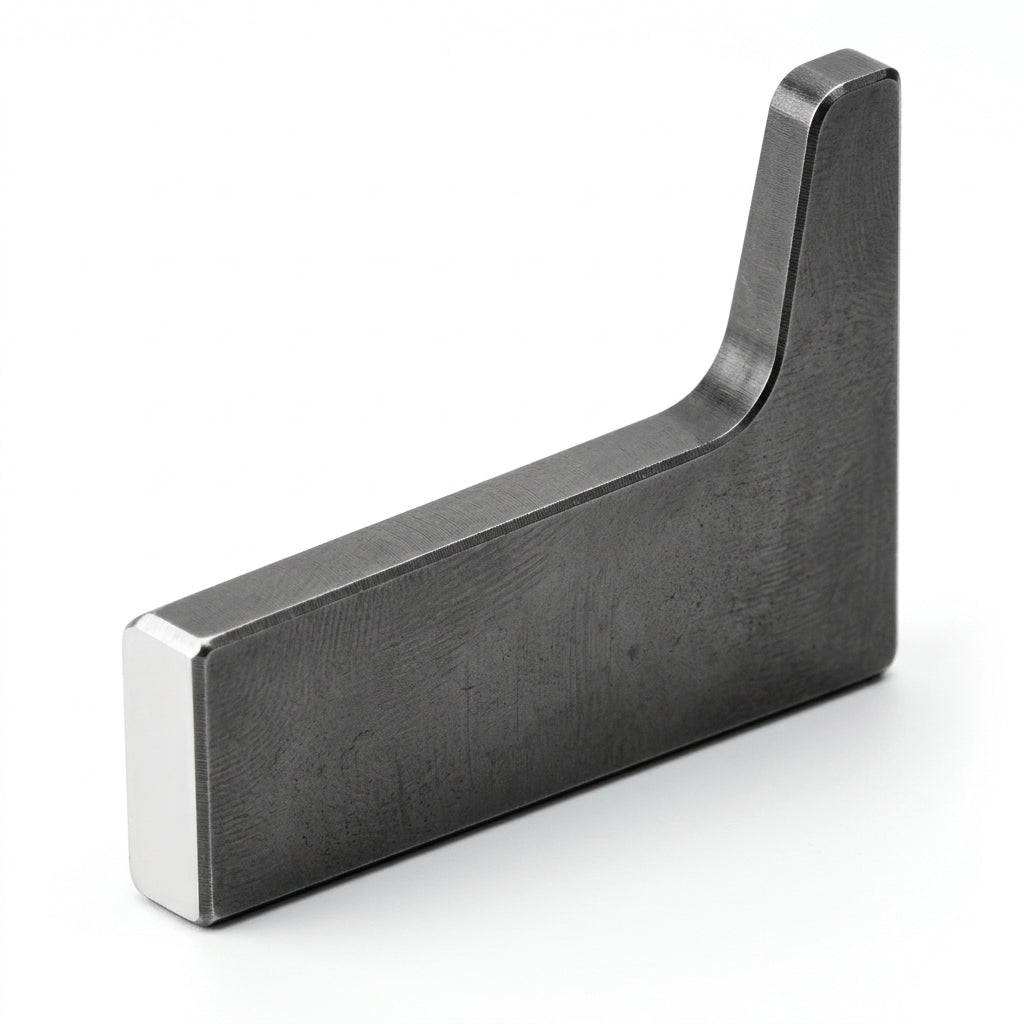

The ATI610 is a compact, precision-engineered aircraft rivet bucking bar forged from heat-treated alloy steel. Weighing 0.75 lbs, it features precision-ground and polished working faces (polished to a minimum 63 micro-inch finish after heat treatment) with radiused corners (1/32"–1/16") to prevent marring or damaging delicate airframe skins.
Surface Finish: Polished working surfaces (63 micro-inch minimum finish) with radiused edges to eliminate stress risers and surface scratching
Application: Designed for backing small-diameter solid aluminum rivets (such as -03 and -04 dash size rivets) in tight structural spaces, ribs, trailing edges, and control surfaces
