HUCK

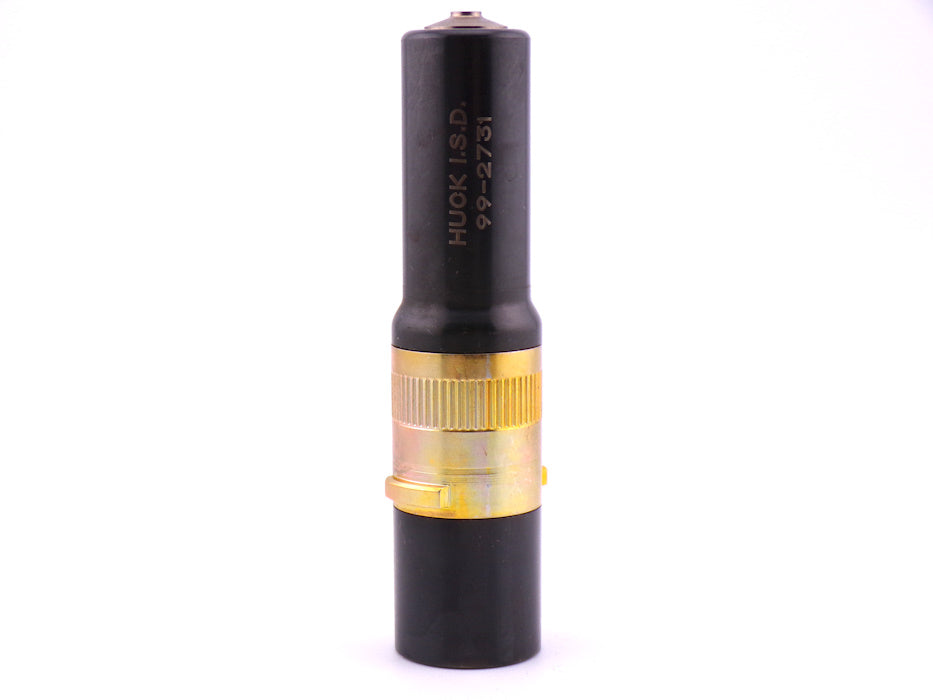

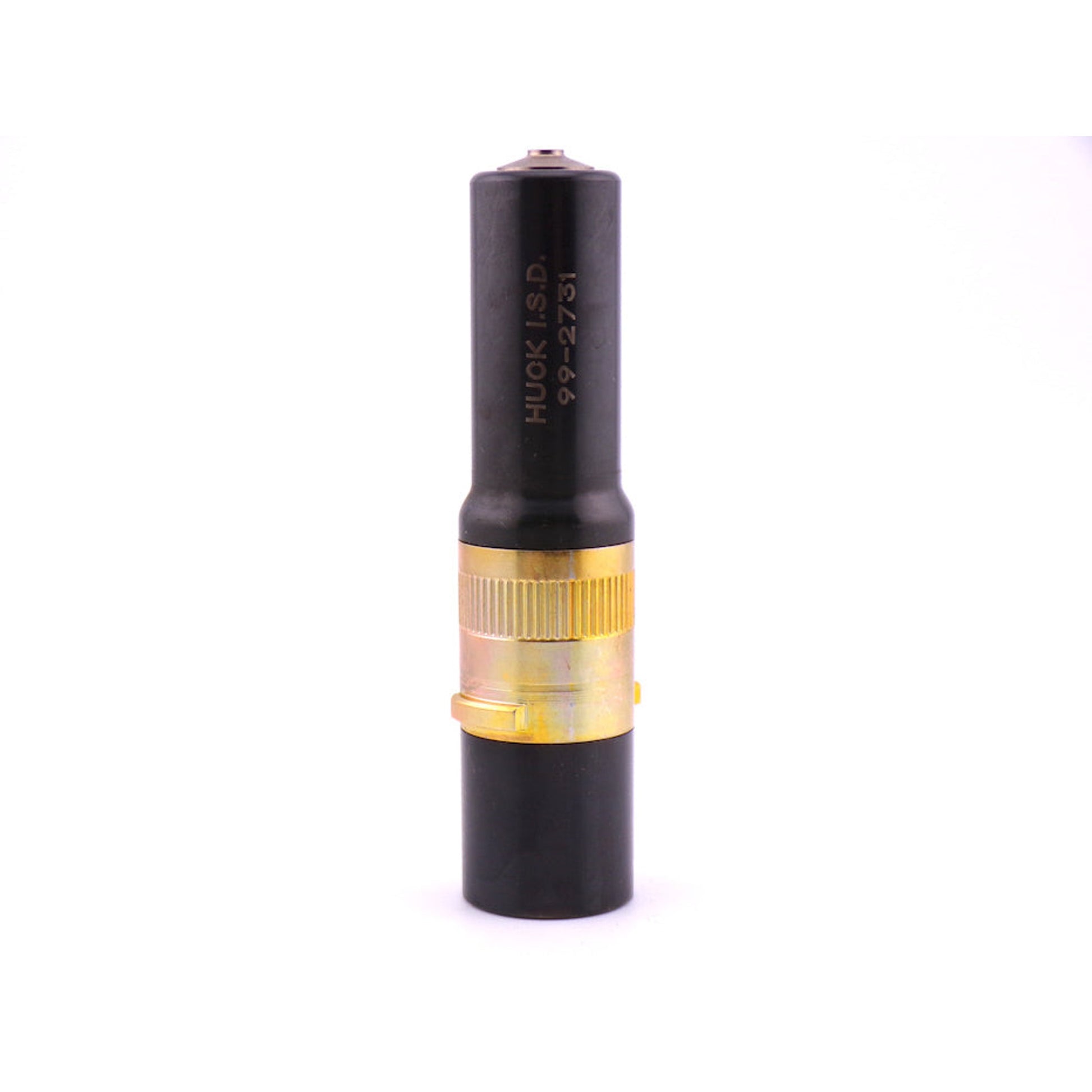

99-2731 Nose Assembly, Straight / Inline, Non-Self-Releasing, 5/32" Single-Action Blind Rivet Pulling Head

99-2731 Nose Assembly, Straight / Inline, Non-Self-Releasing, 5/32" Single-Action Blind Rivet Pulling Head

Regular price $526.45 USD
Regular price $737.00 USD Sale price $526.45 USD
Sale Sold out
Shipping calculated at checkout.

NSN: 5130-01-259-3218

Out of stock. Call for shipping times.

The Huck 99-2731 is a standard straight/inline, non-self-releasing nose assembly engineered to install 5/32" (-05) diameter single-action Unimatic® blind rivets (specifically including NAS1919 and NAS1921 series without drive washers) across all alloy and material types.



  • Fastener Size: 5/32" (-05 dash size / 0.156" nominal)

  • Style: Straight / Inline, non-self-releasing nose assembly

  • Fastener Compatibility: NAS1919 and NAS1921 single-action aerospace blind rivets

  • Tool Compatibility: Integrates directly with standard Huck pneudraulic and hydraulic tools, including models 202, 212, 244 / 244X, 2012, 2025, 2480, and 255.

  • Function: Mounts onto the tool spindle/collet to engage, pull, and set 5/32" single-action blind rivets into structural skin panels and airframe assemblies.

  •

    Technical Details

    Fractional Size 5/32
    Length 3.19
    Tool Type IN-LINE
