HUCK

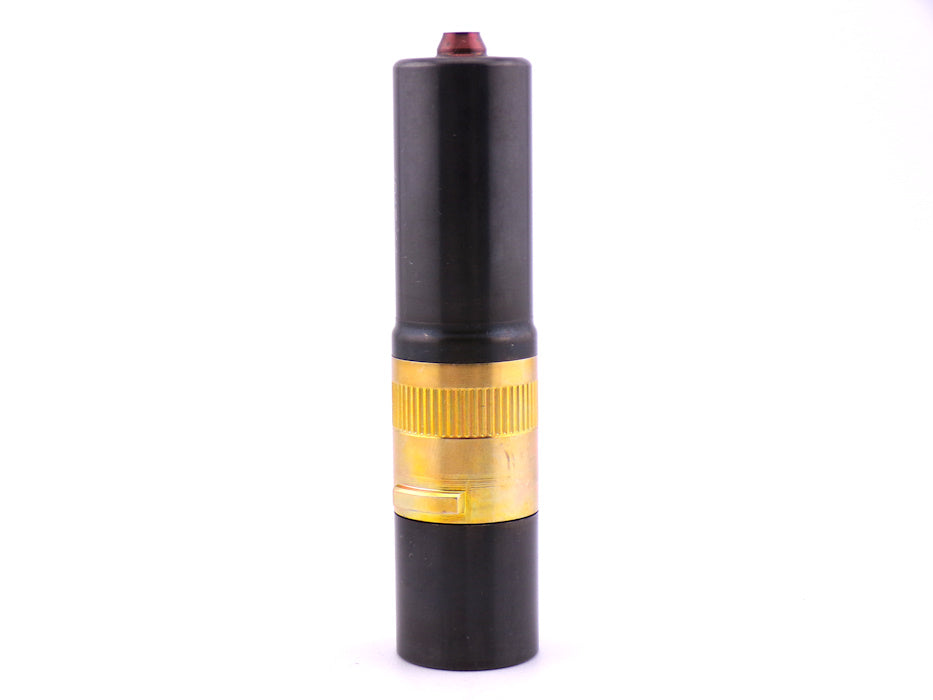

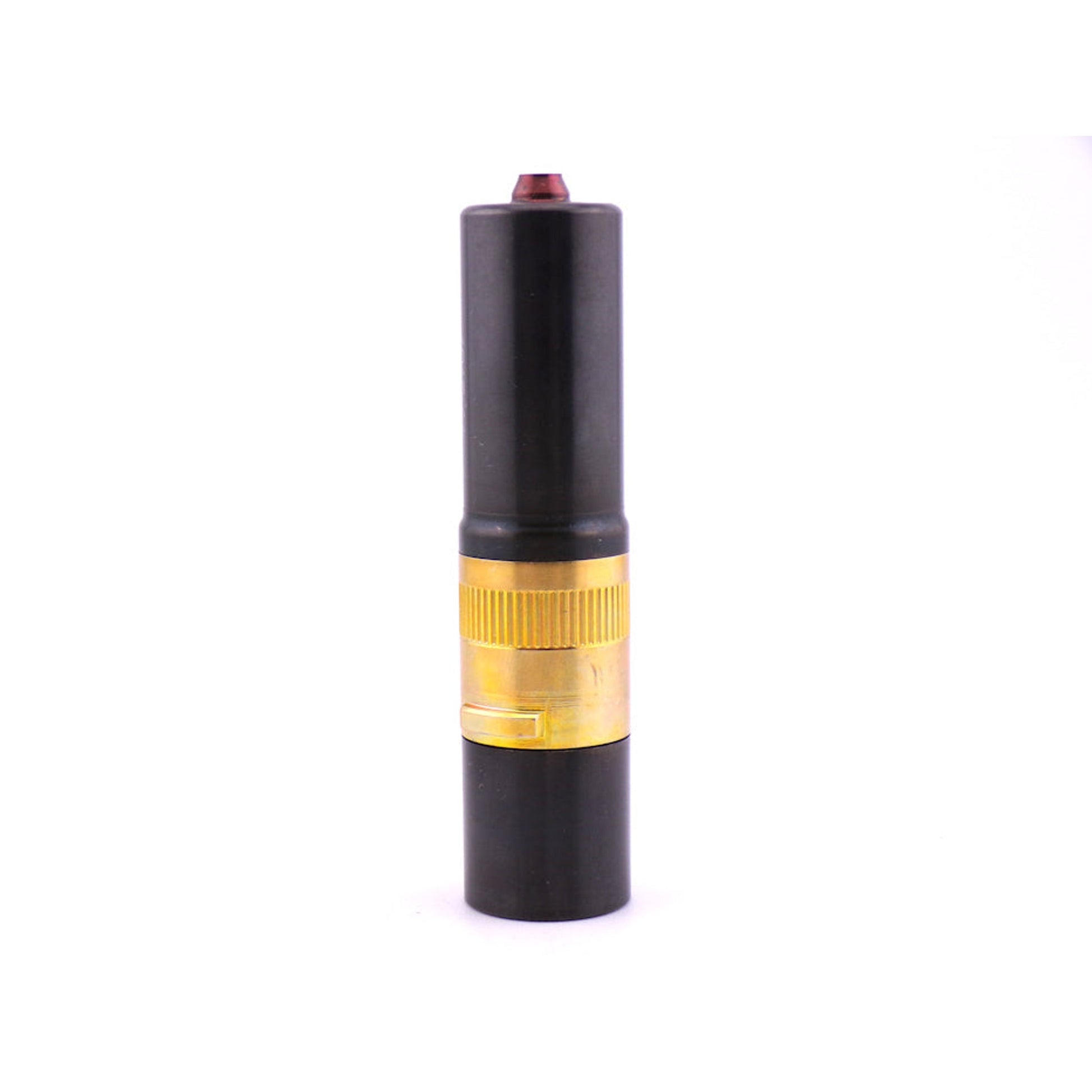

99-2725 Nose Assembly, Straight / Inline, 1/8" Single-Action Blind Rivet Pulling Head
99-2725 Nose Assembly, Straight / Inline, 1/8" Single-Action Blind Rivet Pulling Head
NSN: 5130-01-259-3220
Out of stock. Call for shipping times.
Couldn't load pickup availability
The Huck 99-2725 is a standard straight/inline nose assembly engineered to install 1/8" (-04) diameter single-action blind rivets, specifically including NAS1919 and NAS1921 series (Unimatic® single-action blind rivets without drive washers) across all material types.
Key Specifications & Details:
Fastener Size: 1/8" (-04 dash size / 0.125" )
Style: Straight / Inline nose assembly
Fastener Compatibility: NAS1919 / NAS1921 single-action aerospace blind rivets
Tool Compatibility: Mounts directly onto standard Huck pneudraulic and hydraulic installation tools, including models 202, 244, 2012, and 2025.
Function: Attaches to the tool spindle to pull and set 1/8" blind rivets into airframe structures, skin panels, and assembly components.
Technical Details
| Fractional Size | 1/8 |
| Length | 3.19 |
| Tool Type | IN-LINE |
