HUCK

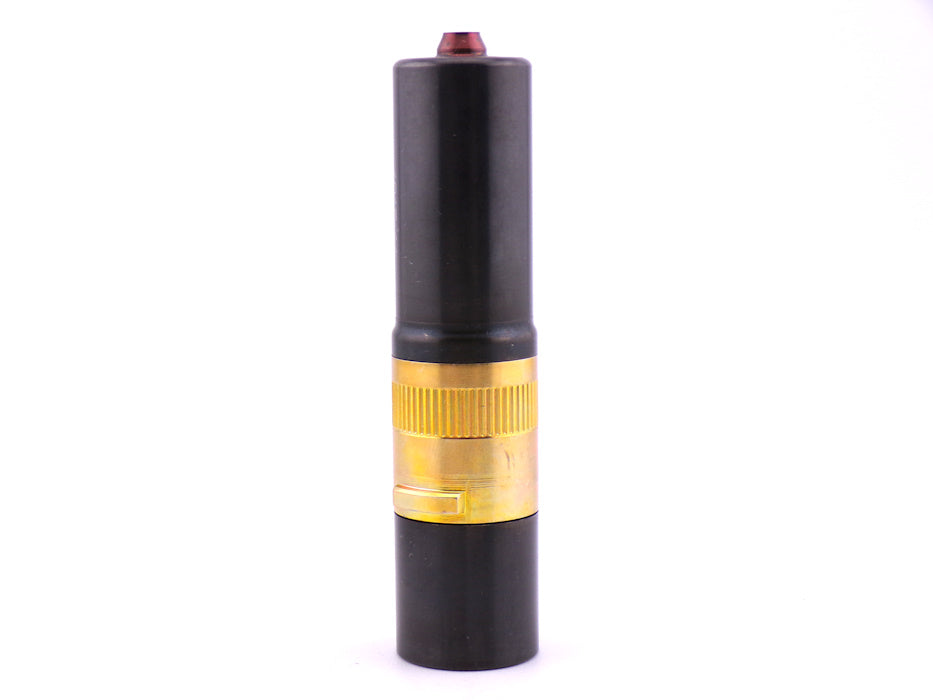

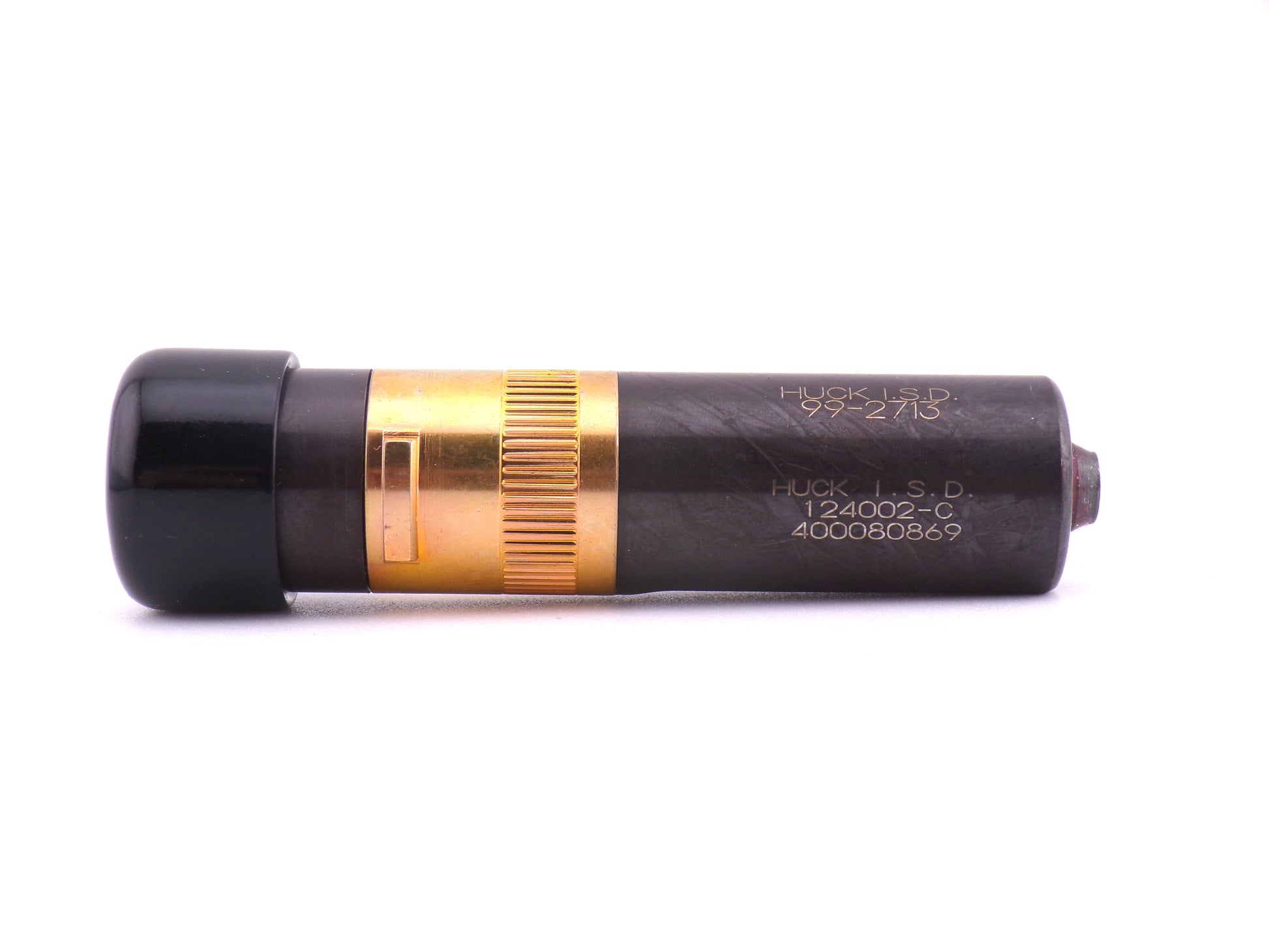

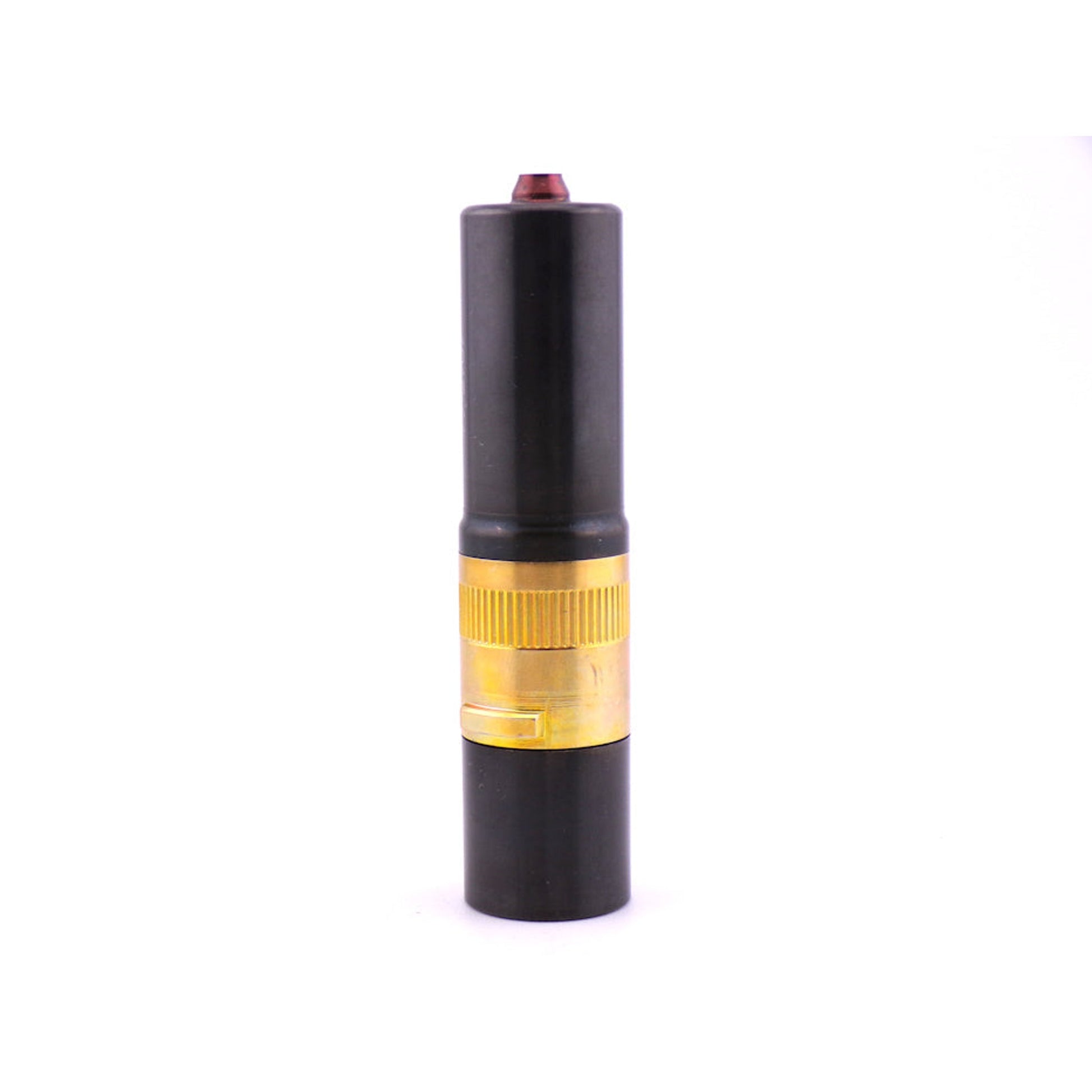

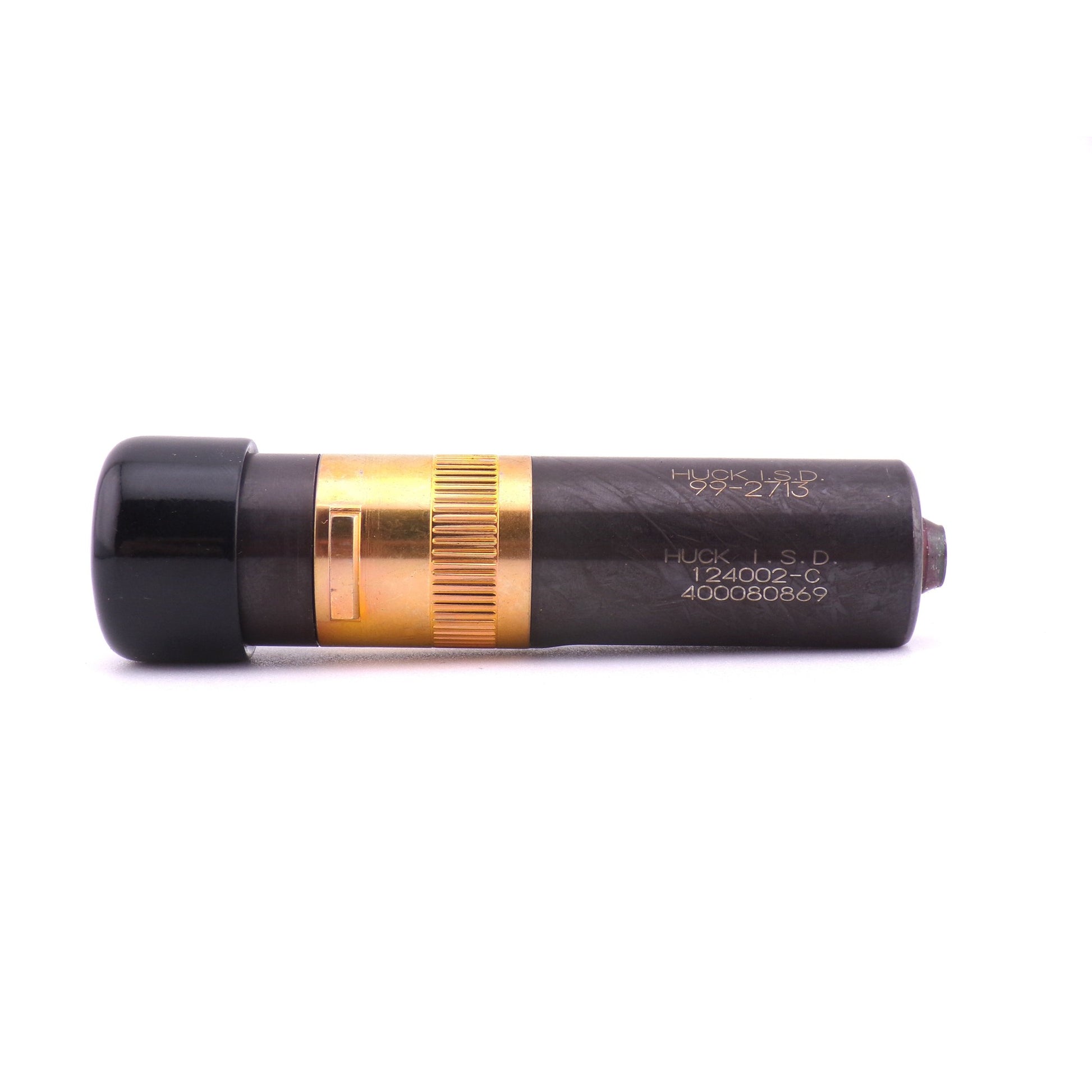

99-2713 Nose Assembly, Straight / Inline, 3/16" (13/64" -06) ASP® Fastener Pulling Head
99-2713 Nose Assembly, Straight / Inline, 3/16" (13/64" -06) ASP® Fastener Pulling Head
Low stock: 3 left
Couldn't load pickup availability
The Huck 99-2713 is a standard straight/inline nose assembly designed specifically for installing 3/16" (-06 / 13/64" oversize) ASP® (Adjustable Sleeve Precision) structural fasteners, such as the ASP2FF and ASP2PF series. ASP® fasteners are engineered for composite-to-metal and fragile skin structure joinery where precise sleeve adjustment and controlled clamp-up are required without crushing core materials.
Fastener Size: 3/16" (-06 dash size / 13/64" nominal oversize)
Style: Straight / Inline nose assembly
Fastener Family: Huck ASP® adjustable sleeve fasteners
Tool Compatibility: Mounts directly onto standard Huck pneudraulic and hydraulic installation tools, including models 202, 212, 244, 2012, 2025, and 254.
Function: Engages the pintail of the 3/16" ASP® fastener, pulling and driving the sleeve to secure composite and metallic skin panels without structural damage.
Technical Details
| Fractional Size | 1/4 |
| Length | 3.17 |
| Tool Type | IN-LINE |
