HUCK

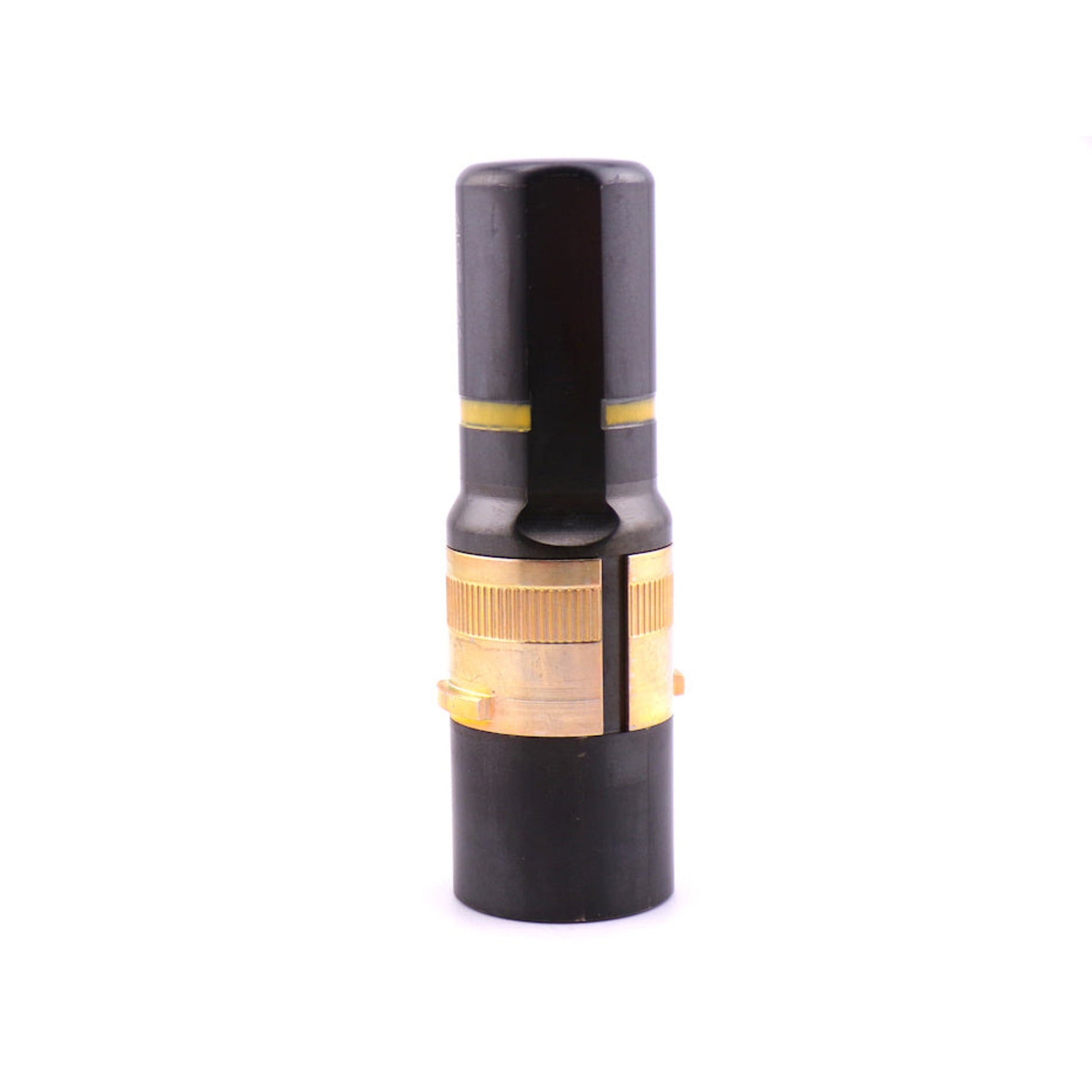

99-2567 Nose Assembly, Straight / Inline, Non-Self-Releasing, 5/16" C6L® & GP® / H-100 Fastener Pulling Head
99-2567 Nose Assembly, Straight / Inline, Non-Self-Releasing, 5/16" C6L® & GP® / H-100 Fastener Pulling Head
NSN: 5130-01-419-8693
Out of stock. Call for shipping times.
Couldn't load pickup availability
The Huck 99-2567 is a standard straight/inline, non-self-releasing nose assembly engineered specifically to install 5/16" (-10 dash size) C6L® lockbolts and GP® / H-100 structural fasteners.
Fastener Size: 5/16" (-10 dash size / 0.3125" nominal)
Style: Straight / Inline, non-self-releasing nose assembly (approx. 0.920" head diameter)
Fastener Family: Huck C6L® lockbolts and standard GP / H-100 series structural fasteners
Tool Compatibility: Mounts directly onto higher-capacity pneudraulic and hydraulic installation tools, including models 245, 246, 254, 255, and A2480.
Function: Engages the 5/16" pin tail, pulling the joint tight and swaging the collar into the locking grooves before breaking off the pintail.
Technical Details
| Fractional Size | 5/16 |
| Length | 3.48 |
| Tool Type | IN-LINE |
