HUCK

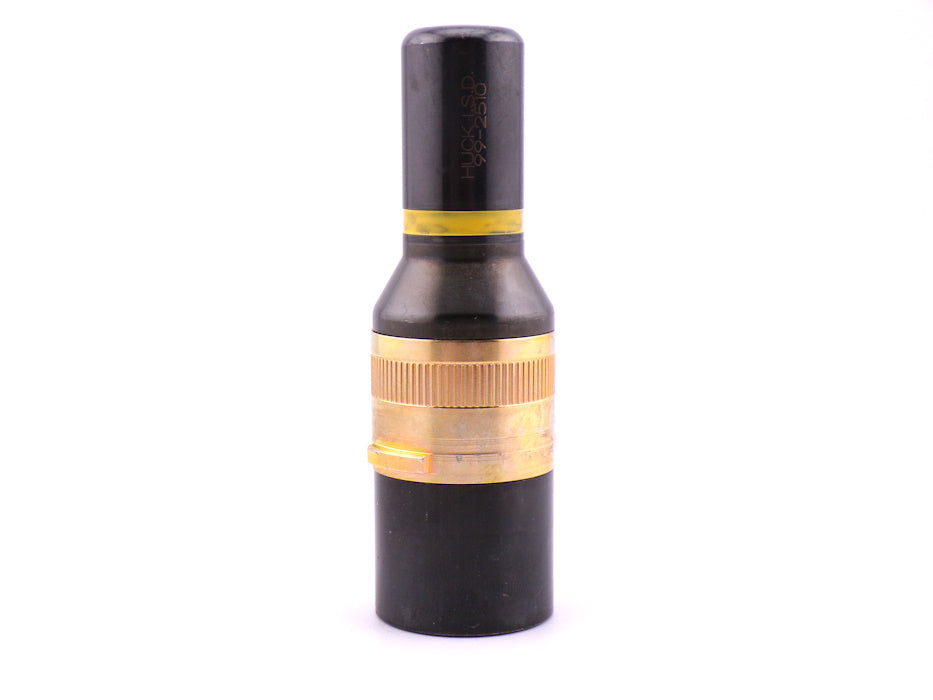

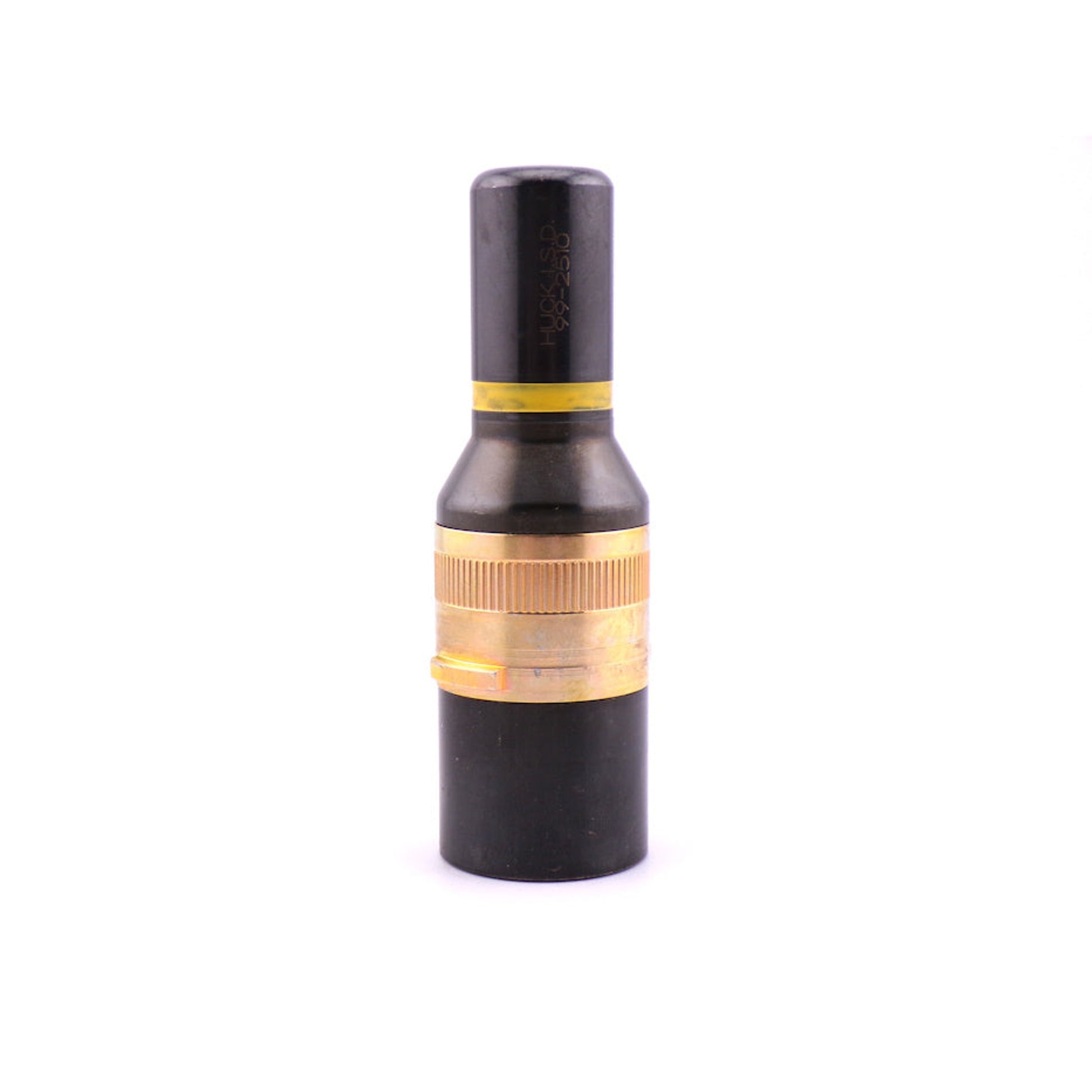

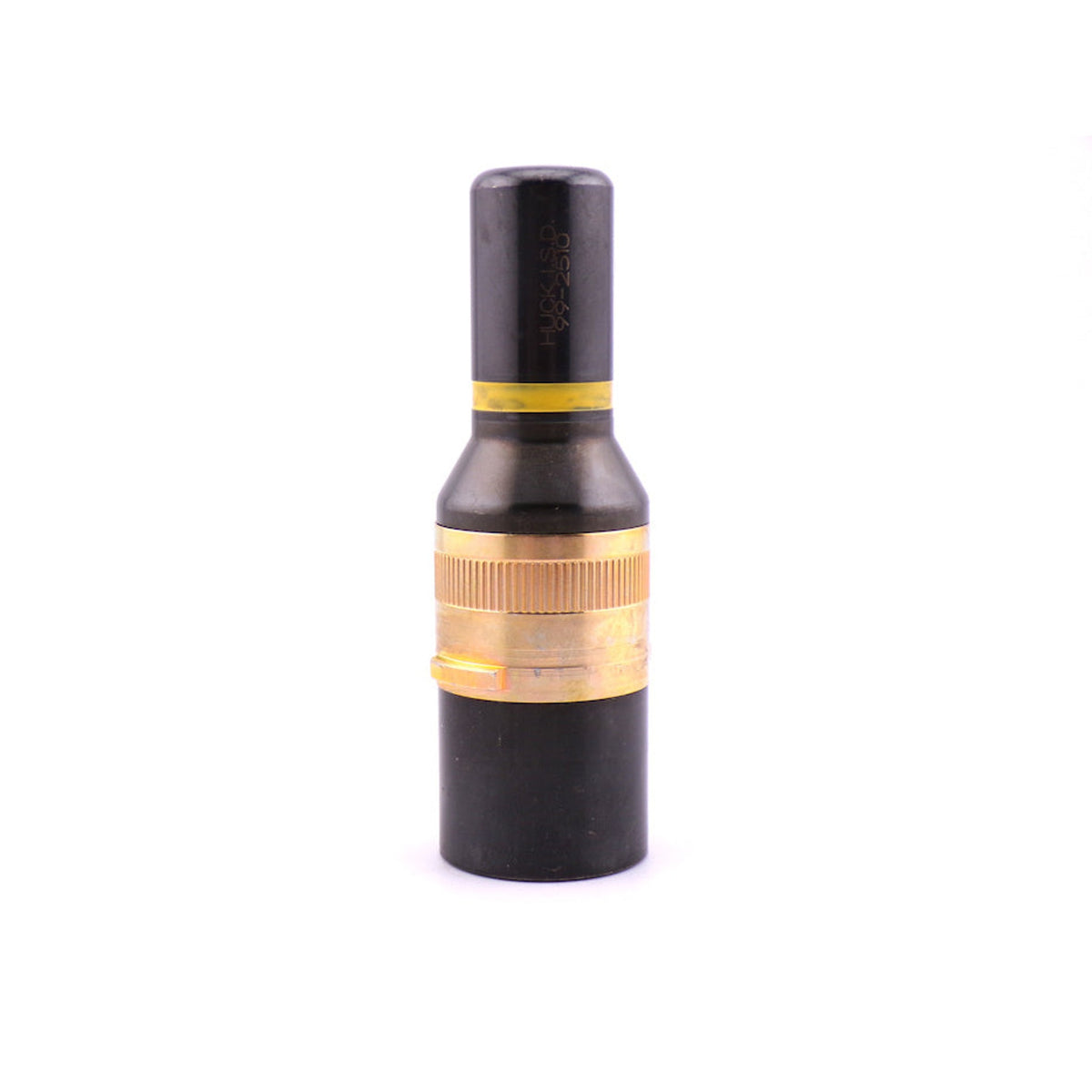

99-2510 Nose Assembly, Straight / Inline, Standard, 3/16" (-06) LGP® Lockbolt Pulling Head
99-2510 Nose Assembly, Straight / Inline, Standard, 3/16" (-06) LGP® Lockbolt Pulling Head
NSN: 5130-01-419-8691
Out of stock. Call for shipping times.
Couldn't load pickup availability
The Huck 99-2510 is a standard straight/inline, non-self-releasing nose assembly designed specifically to install 3/16" (-06 dash size) LGP® (Low-Profile Ground) lockbolts and structural blind fasteners in aerospace and industrial manufacturing applications.
Fastener Size: 3/16" (-06 dash size / 0.187" nominal)
Style: Straight / Inline, standard-reach nose assembly
Fastener Family: Huck LGP® structural aerospace lockbolts
Tool Compatibility: Integrates with standard production pneudraulic and hydraulic tools (such as models 245, 246, 255, 256, and similar high-capacity production riveters).
Function: Attaches to the tool spindle to grip, pull, and swage 3/16" LGP collars securely into aircraft or industrial joints before breaking off the pintail.
Technical Details
| Fractional Size | 3/16 |
| Length | 3.41 |
| Tool Type | IN-LINE |
