HUCK

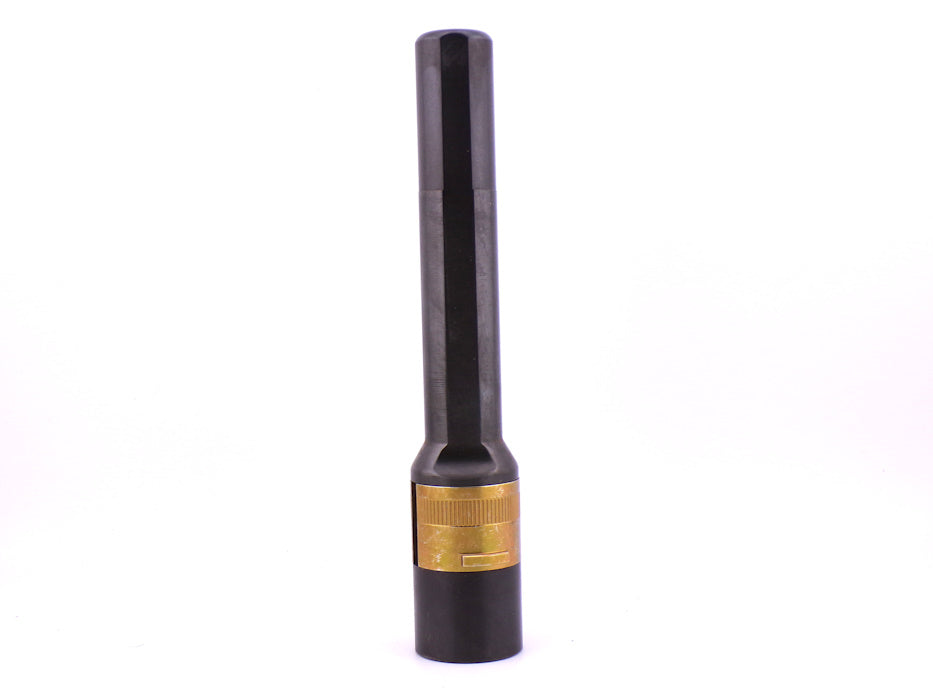

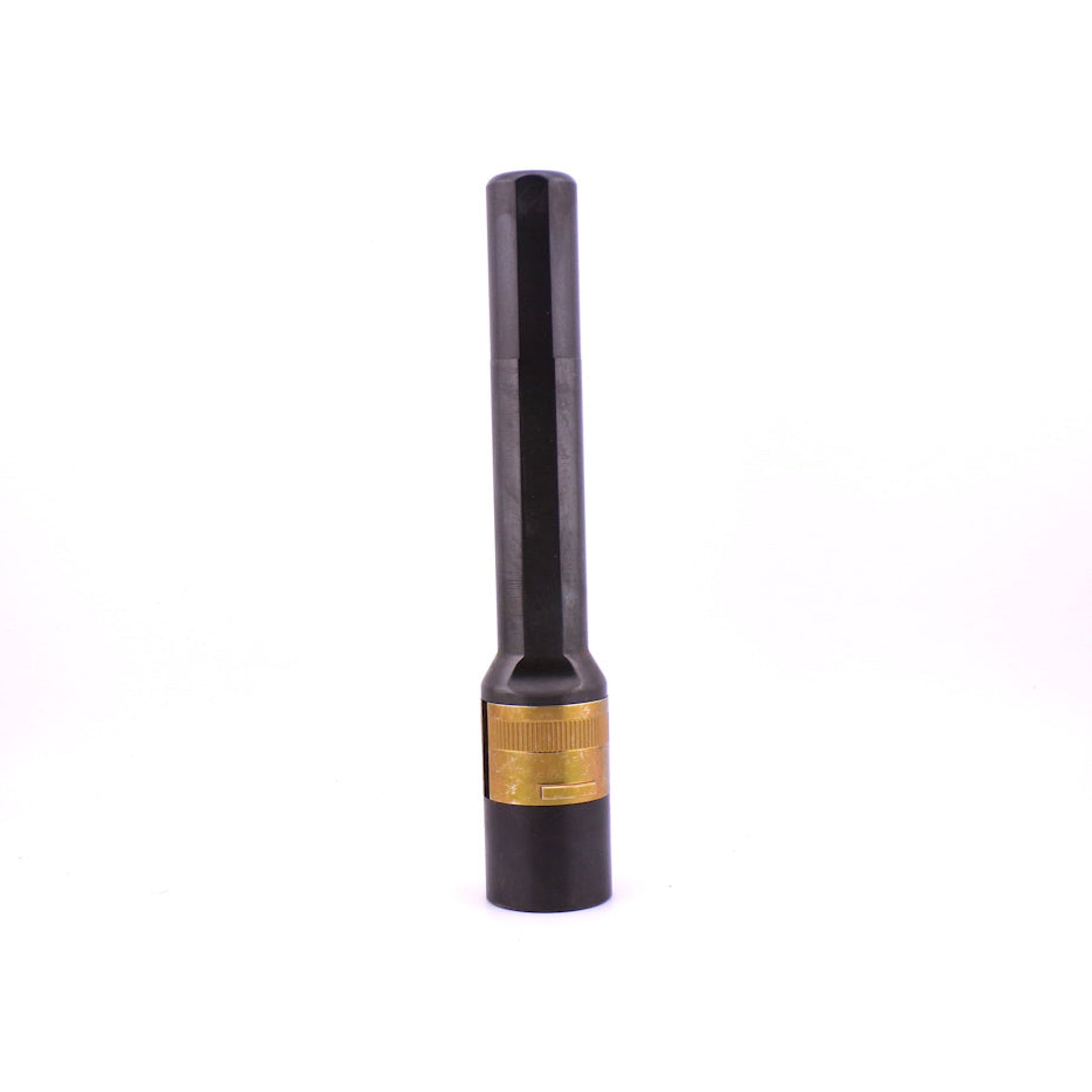

99-2508CH Nose Assembly, Straight / Inline, 1/8" Single-Action Blind Fastener Pulling Head

99-2508CH Nose Assembly, Straight / Inline, 1/8" Single-Action Blind Fastener Pulling Head

$643.18 USD
$714.67 USD $643.18 USD
Sale Sold out
Shipping calculated at checkout.

NSN: 5130-01-419-8692

Out of stock. Call for shipping times.

The Huck 99-2508CH is a specialized long-reach, non-self-releasing nose assembly featuring a chisel-style anvil design. It is engineered specifically to install 3/16" (-06 dash size) LGP® (Low-Profile Ground) lockbolts and structural blind fasteners in restricted or tight-clearance aerospace structural locations.



  • Fastener Size: 3/16" (-06 dash size / 0.187" nominal)

  • Style: Long-reach, non-self-releasing with a chisel-style profile anvil

  • Fastener Compatibility: LGP® aerospace lockbolts and structural fasteners

  • Tool Compatibility: Mounts to standard high-production pneudraulic and hydraulic installation tools, including models 244X, 2480, and 7352.

  • Function: Provides extended reach and a specialized profile to grip, pull, and swage 3/16" lockbolt collars in confined structural cavities or recessed airframe framing where standard straight noses cannot fit.

    •

    Technical Details

    Fractional Size 3/16
    Length 5.43
    Tool Type IN-LINE
