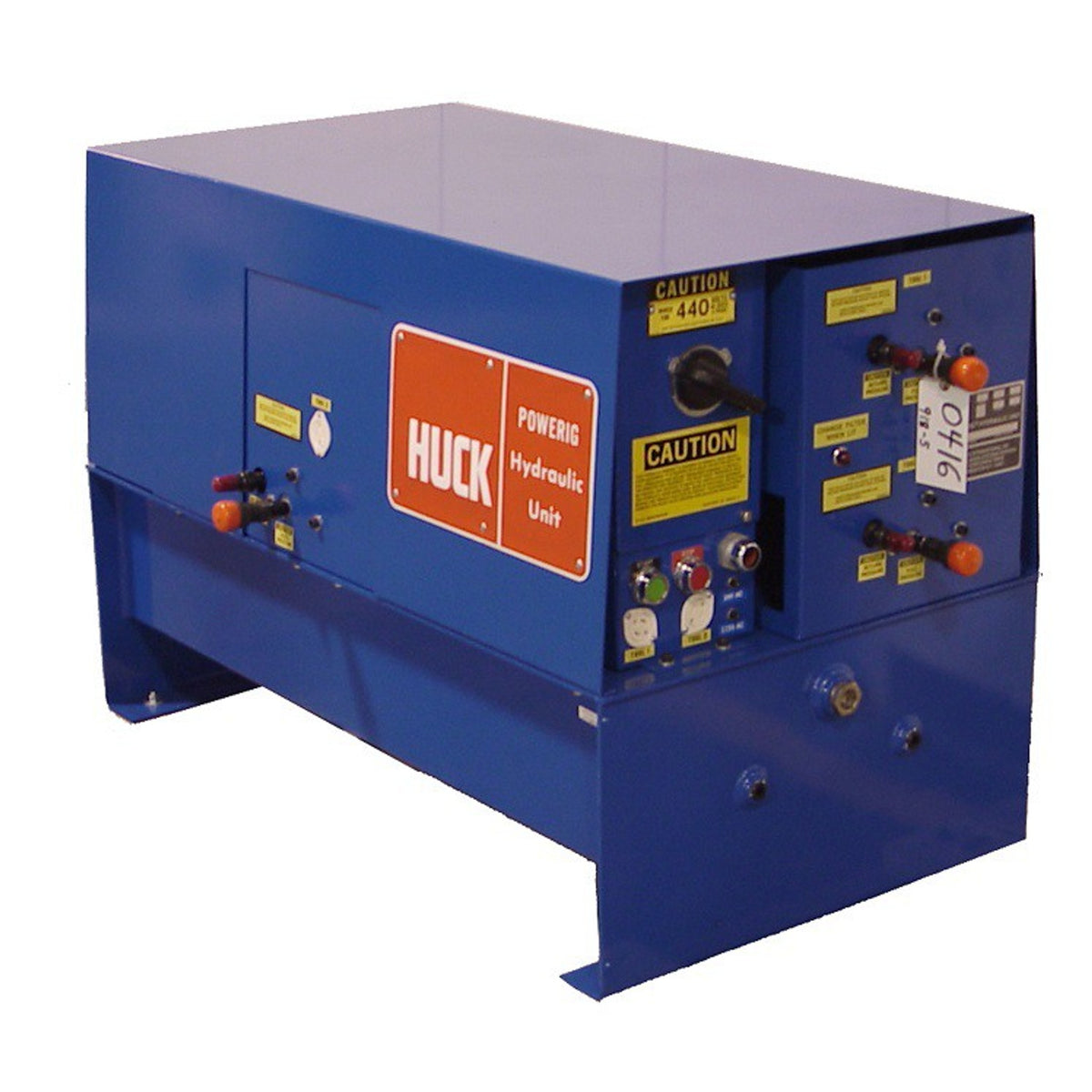

918

Electrically powered and electrically actuated, twin 2 gpm
systems for production applications. Operates 2 tools simultaneously
and independently of each other. Powerful enough
to operate equipment up to 100 feet from the hydraulic unit.
Delivers 8400 psi working pressure. Simple adjustment allows
tools requiring different hydraulic pressures to be used. 22
gallon reservoir system with fan radiator air/oil heat exchanger.
Unit is semi-portable and can be moved with a fork lift truck.
System: Single open center circuit with 8,400 psi max, 2 gpm
each circuit for 918, 1.33 gpm each circuit for 918-5

Pump: Axial 6 piston SPLIT FLOW Constant Displacement
Hydraulic Piston Pump direct mounted on motor

Oil Control: Four way solenoid operated Directional Valve,
pressure relief valve, and idler valve on each circuit

Reservoir Capacity: 22 gallons (center of sight gauge)

Cooler: Fan and radiator air/oil heat exchanger

Remote Control: 24 volt control circuit

Power Source: 10 HP electric motor 220 or 440 volts, 60 hertz,
3 phase (components shipped with unit allow change over to
220 volts, 60 hertz, 3 phase operation)

Dimensions: 44" long, 25" wide, 30" high

Weight: Dry 585 lbs, operational 708 lbs

Hydraulic Fluid: Fire-resistant hydraulic fluid—Dexron II ® or
equivalent
