HUCK

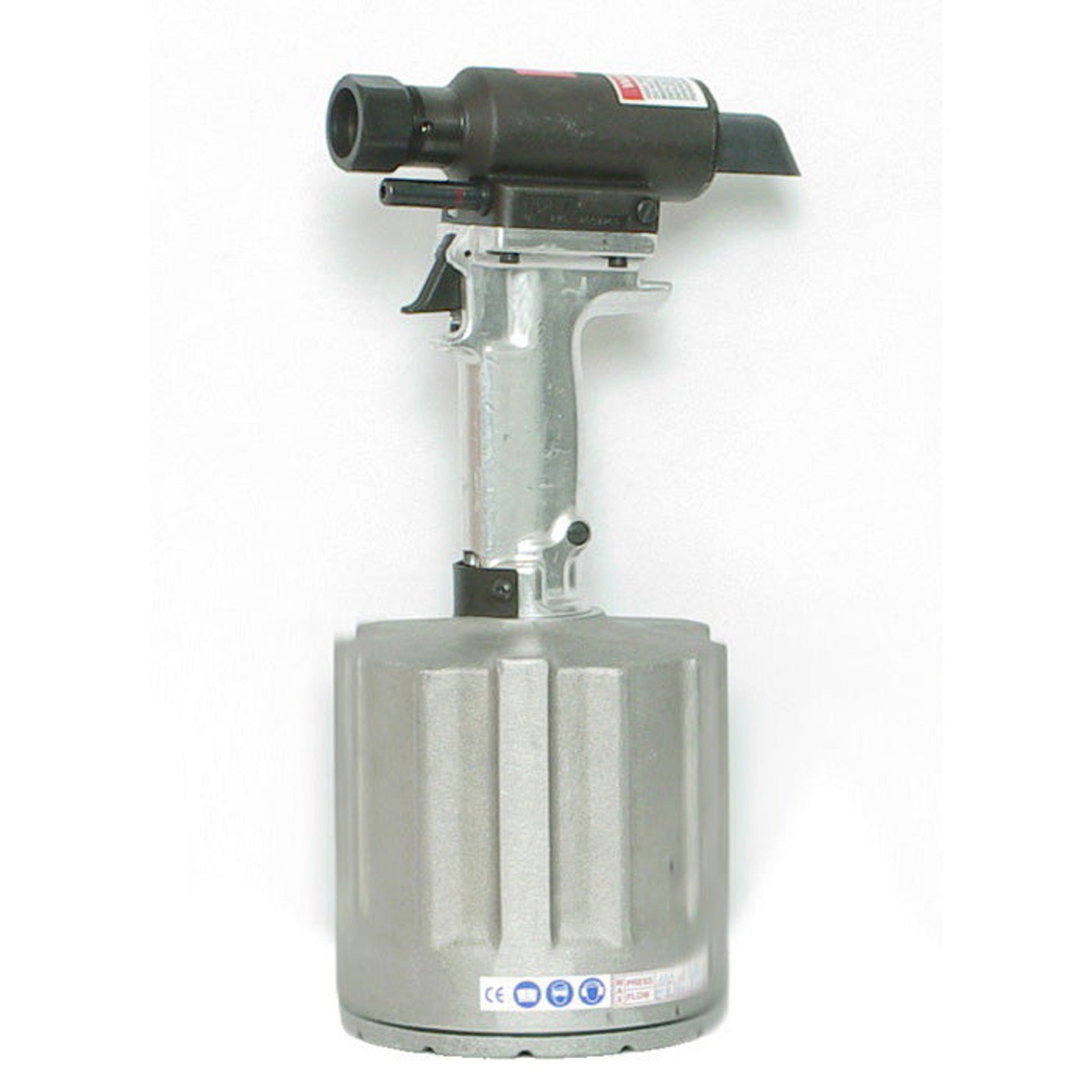

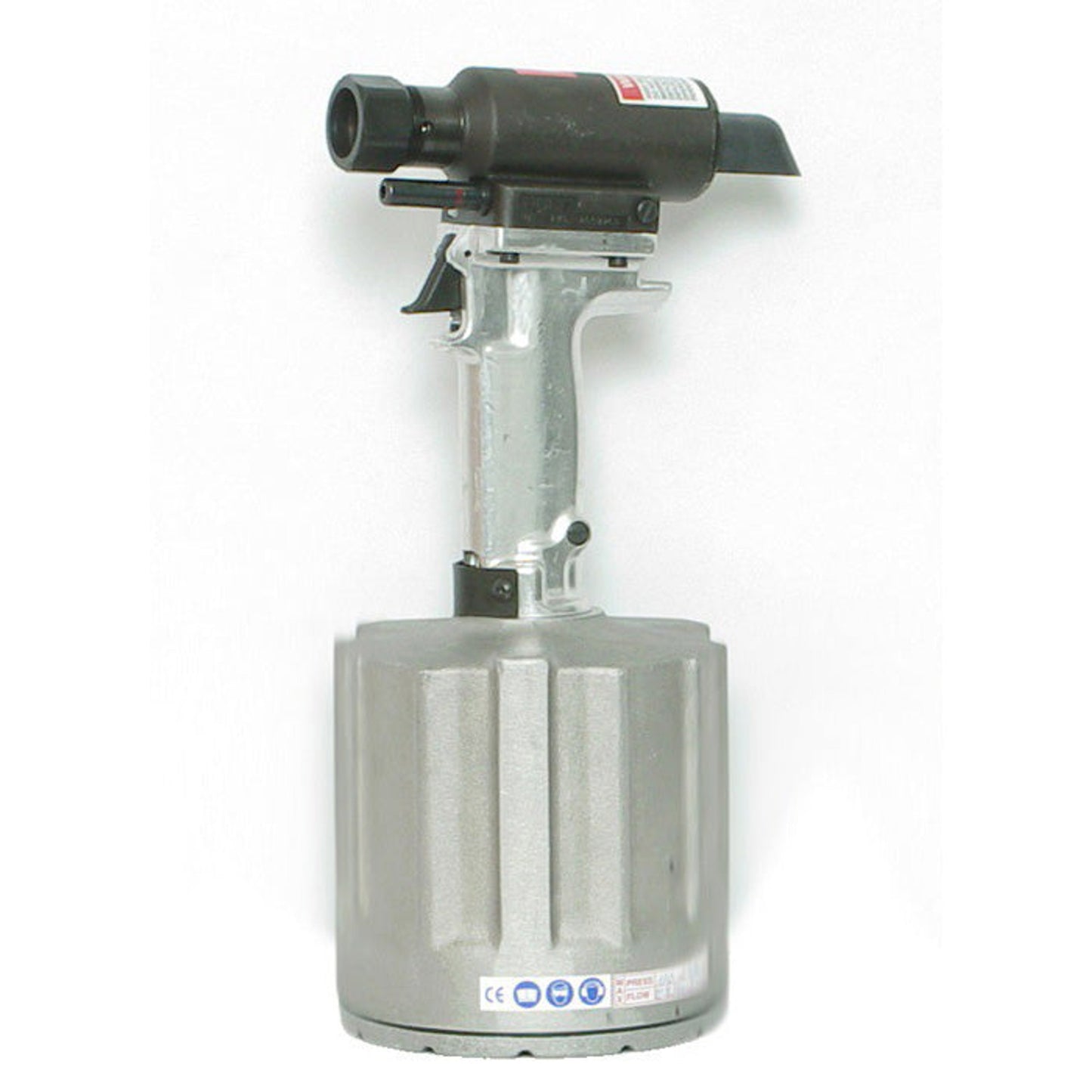

256 Pneudraulic Installation Tool / Heavy-Duty
256 Pneudraulic Installation Tool / Heavy-Duty
NSN: 5130-01-524-7185
Low stock: 3 left
Couldn't load pickup availability
The Huck 256 is a high-capacity pneudraulic tool engineered for high-speed installation of heavy-duty structural blind fasteners and lockbolts. Delivering nearly 10,000 lbs of pull capacity with a extended 0.875" stroke, it is widely utilized in aerospace airframe structures, heavy transportation, and industrial manufacturing.
Pull Capacity: 9,986 lbs @ 90 psi (44.42 kN @ 6.2 bar)
Stroke Length: 0.875 inches (22.22 mm)
Weight: 11.1 lbs (5.03 kg)
Operating Air Pressure: 90–100 psi (6.2–6.9 bar)
Air Consumption: 14.8 SCFM
Fastener Capacity: Up to 3/8" (-12) diameter structural blind bolts, blind rivets, and lockbolts (including C6L®, Magna-Grip®, HuckBolt®, and ASP® fasteners depending on nose assembly installed).
