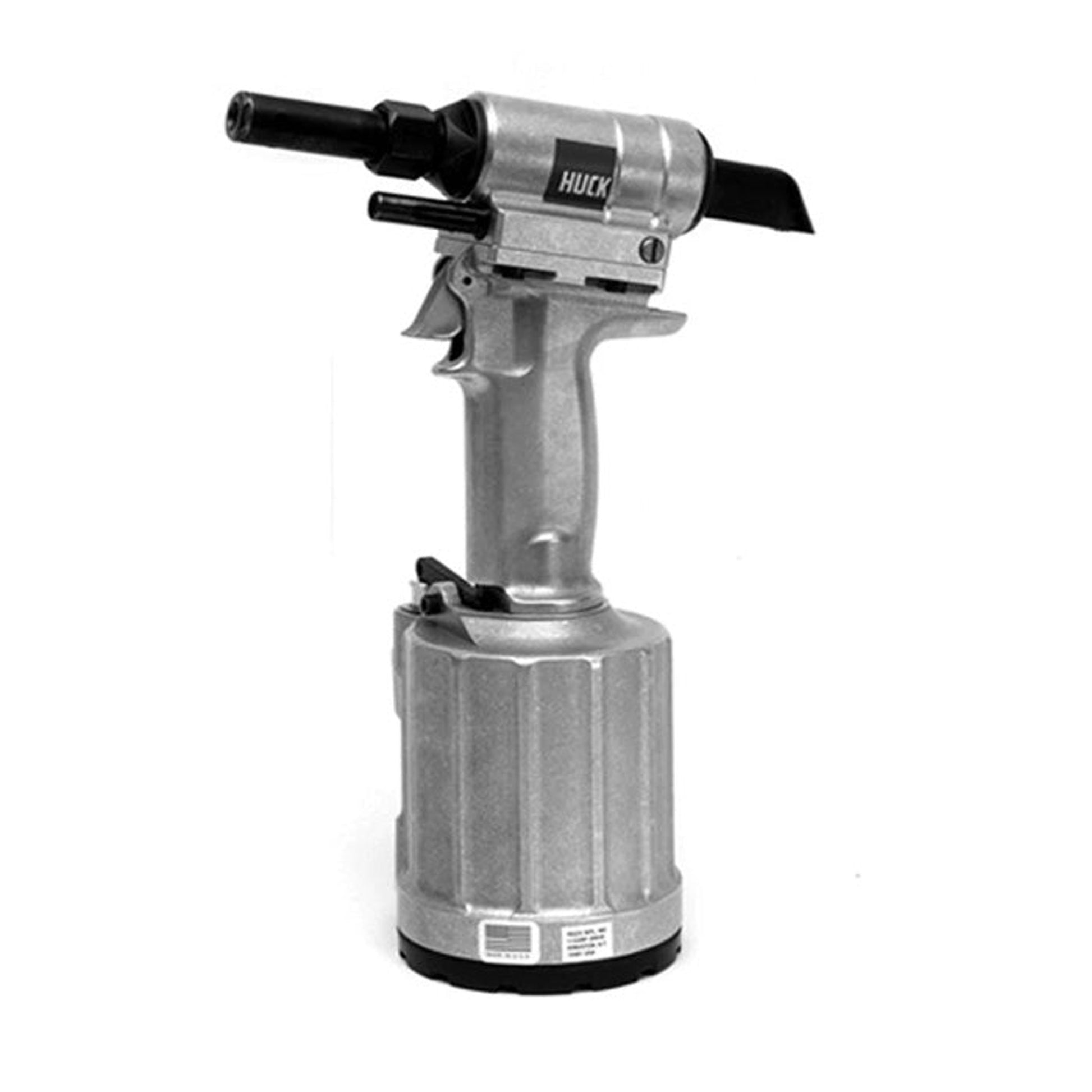

244X Pneudraulic Installation Tool / Lightweight High-Speed Structural Riveter

The Huck 244X is an upgraded, high-speed pneudraulic installation tool optimized for volume production of structural blind rivets, blind bolts, and lockbolts up to 1/4" (-08) diameter. The "X" designation features stainless steel sleeve inserts installed in both the head and handle assembly to significantly reduce wear and extend tool life under continuous production cycles.

Pull Capacity: 4,600 lbs @ 90 psi (20.46 kN @ 6.2 bar)

Stroke Length: 0.562 inches (14.27 mm)

Weight: 5.69 lbs (2.58 kg)

Operating Air Pressure: 90–100 psi (6.2–6.9 bar)

Air Consumption: 11.1 SCFM

Fastener Capacity: Up to 1/4" (-08) structural blind fasteners and lockbolts (including ASP®, Unimatic® NAS1919/1921, single-action MS blind bolts, C6L®, and GP® series depending on nose assembly installed).
