HUCK

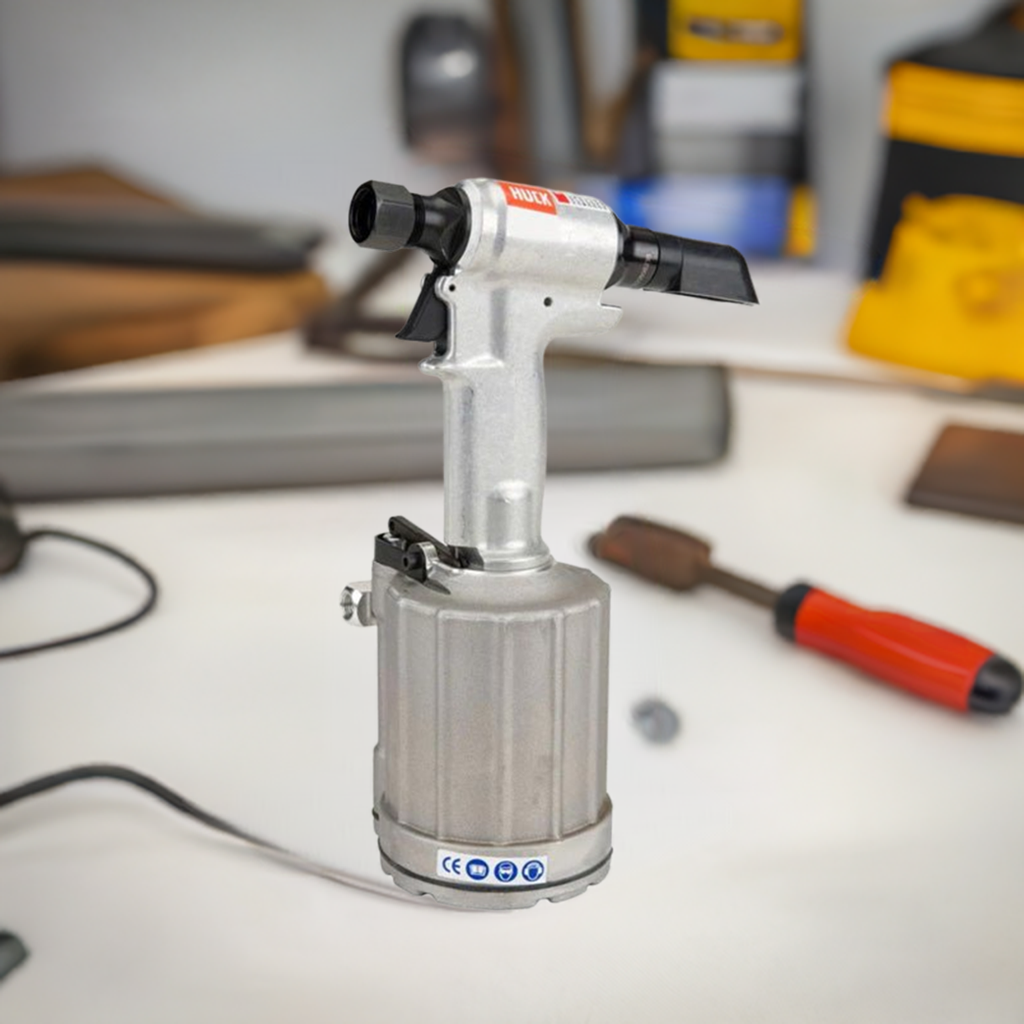

2025 Pneudraulic Installation Tool / Lightweight High-Speed Structural Fastener & Rivet Gun
2025 Pneudraulic Installation Tool / Lightweight High-Speed Structural Fastener & Rivet Gun
NSN: 5130-01-320-1140
Out of stock. Call for shipping times.
Couldn't load pickup availability
The
Pull Capacity: 5,290 lbs @ 90 psi (23.53 kN @ 6.2 bar)
Stroke Length: 0.675 inches (17.15 mm)
Weight: 5.75 lbs (2.61 kg)
Operating Air Pressure: 90–100 psi (6.2–6.9 bar)
Air Consumption: 8.5 SCFM (241 LPM)
Fastener Capacity: Up to 1/4" (-08) diameter structural blind rivets, blind bolts, and lockbolts (including C6L®, GP®, ASP®, Unimatic® NAS1919/1921, and single-action MS series depending on nose assembly installed)
Dimensions:
- Length 8.36 in. / 212.34 mm
- Width 1.81in. / 45.97 mm
- Height 12.53 in. / 318.26 mm
|
Fastener # |
Fastener Dia. |
Nose Assy. |
Nose Type |
|
NAS1919/21″Sâ€OSMLSP |
-4 | 99-2725 | Straight |
| -5 | 99-2731 | ||
| -6 | 99-2737 | ||
| -8 | 99-2743 | ||
|
MS90353/54″S†or “Uâ€MS21140/41″S†or “Uâ€OBP-EU/OBP-T/OB100-EU OB100-T OSBP-EU/OSBP-T OSB100-EU/ OSB100-T |
-5 | 99-2701 | |
| -6 | 99-2707 | ||
| -8 | 99-2713 |
See Selection Charts for more nose assembly choices
Technical Details
| Capacity | 1/4 |
| Weight | 6.0 lbs |
| Force | 5,290 LBS |
| Stroke | 0.675 |
