2012

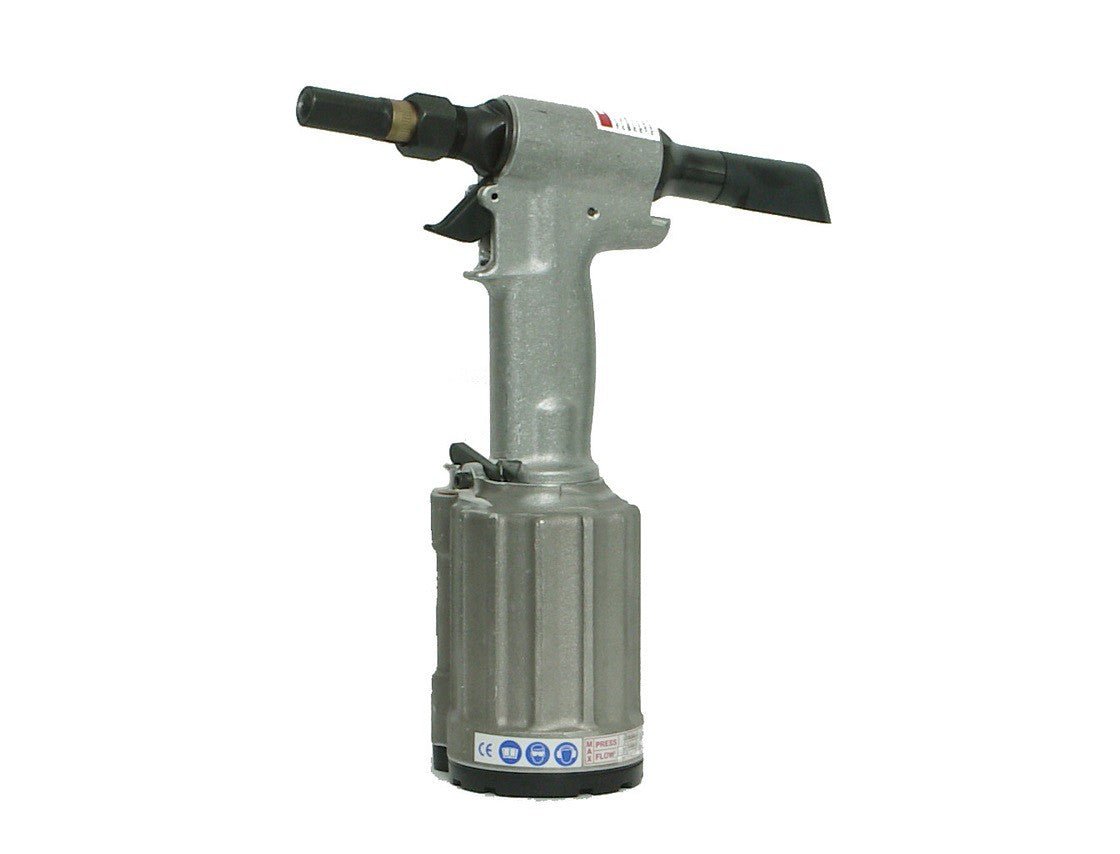

The 2012 models are lightweight, high-speed production tools that install:
-04 through -06 diameter HUCK-CLINCH ® fasteners
-04 through -06 diameter Huck UNIMATIC ® blind rivets
Any other blind fasteners

The pulling action of the pull piston is provided by a pneumatic-hydraulic (pneudraulic) intensifier system that is powered by 90 psi (6.2 bar) air pressure.
The air inlet is equipped with a connector with 1/4”-18 female pipe threads to accept your air hose or quick-connect fitting.

MODEL FEATURE
The 2012V model has a Slide & Tube Assembly (P/N 124245)

Ribbed “ON/OFF” vacuum-regulating slider that enhances the tool capabilities by:
- expelling broken pintails into the pintail collector, and
- holding fasteners firmly in the nose assembly, with the tool in any position.

When the tool is not in use, the OFF position (slider forward) will prevent air loss.
